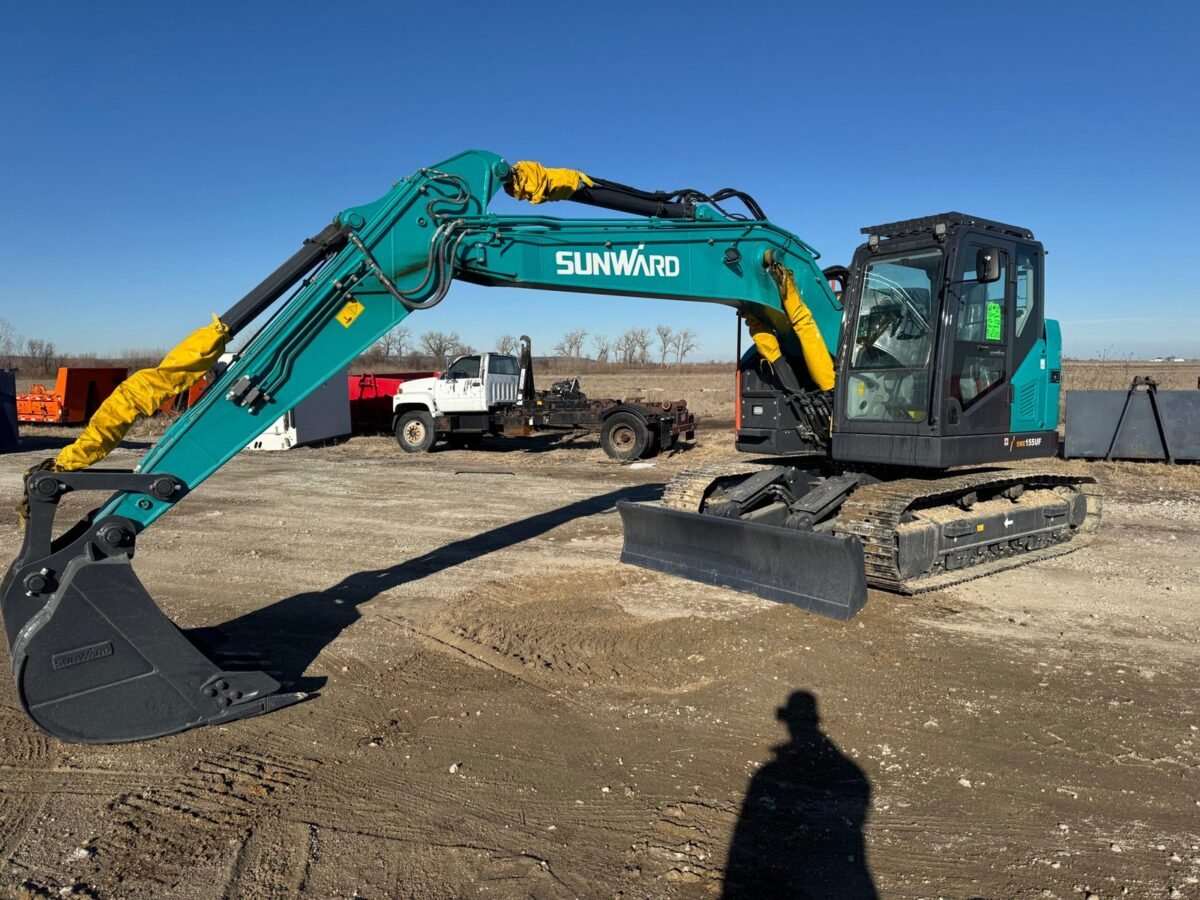

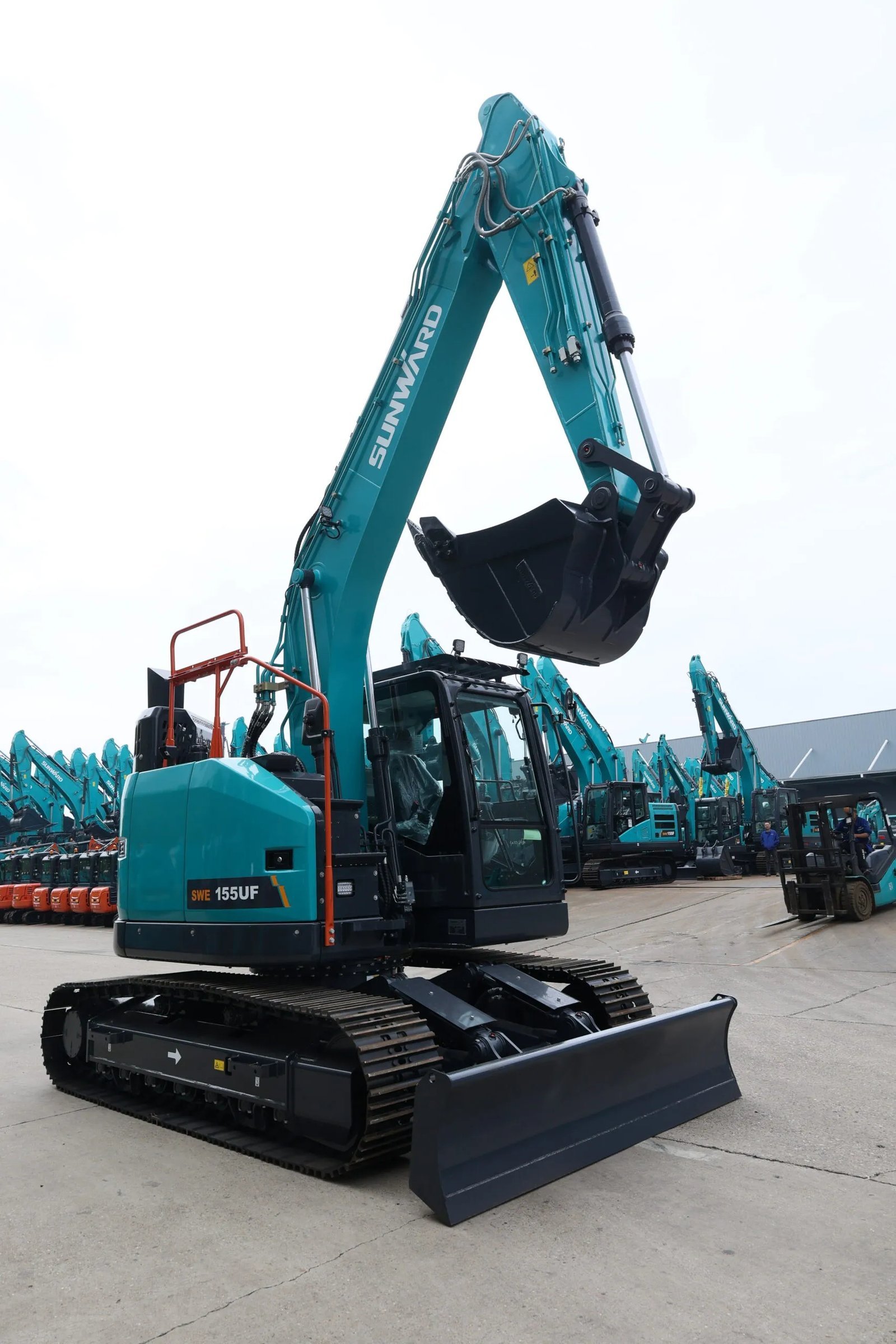

Looking for an excavator that will tear up a job site without taking up too much room? The Sunward SWE 155UF medium excavator features a very short-tail swing and a 2-piece boom allowing it to work in a wide variety of urban tasks, including operating in confined spaces and along walls. It is designed to be versatile and durable, with a long lifetime.
The SWE 155UF’s masterful design, Cummins EU Stage V engine, and enhanced hydraulics system deliver smooth operation and high productivity. This top‑of‑the‑line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.
In the Sunward tradition to always offer the best value for money, the SWE 155UF is no exception since it offers many features and up to 3 years of warranty as standard, at the right price.
Dimensions
Operating weight           36382 lbs
Standard bucket capacity    0.798 yd3
Shipping length             24’1″
Shipping width              8’6″
Height over canopy          9’8″
Engine
Model Type                 Cummins QSF3.8 3.8L
Emission rating              EU Stage V
Power                      120.6 HP
Hydraulic System
Type                      Variable piston pump
Displacement              18 L / min
Hydraulic pressure         4554.3/4974.9 psi
Working Range
Max. digging depth           18’1″
Max. digging reach           27’5″
Max. bucket digging force     22481 lbf
Max. arm digging force       17085.56 lbf
